Eurorack VCO

This has been a very long project which is finally starting to come together. Last year I came across Moritz Kleins youtube series on building your own analog synthesizer. At the time I was struggling to get to grips with some op-amp circuits in one of the older products at work, so I figured working my way through the series would be a fun way to get back into analog design.

Unfortunately things have dragged since I first bought all the parts. I spent a long time trying to find either a cheap pre-built power supply or a design I can build on the cheap. Neither of them have manifested themselves so I'm still planning to power the boards with batteries, which is obviously not ideal. I also decided I wanted to start with the VCO (Voltage-Controlled Oscillator) which is arguably one of the more complicated designs Klein has covered. Since its the bit that actually produces the sound though it's probably the most sensible place to start.

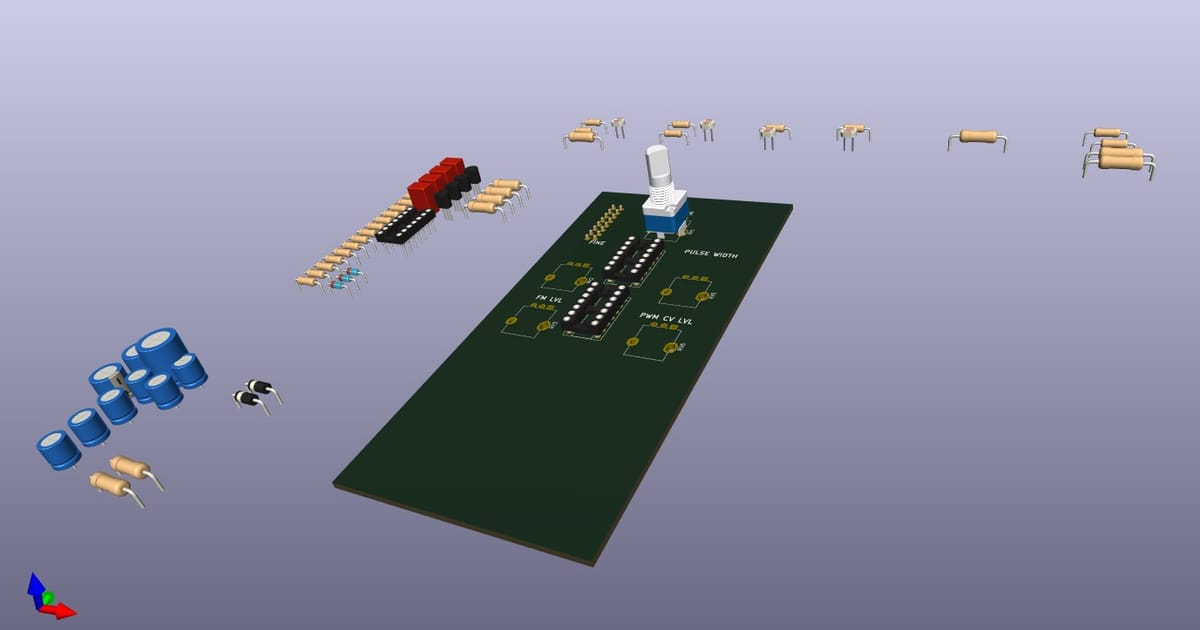

After all of that, the schematic is finally done. The original design puts out a voltage-controlled sawtooth and square wave. I also found some simple circuits to convert the sawtooth output firstly into a triangle wave, then that into a sine wave. Since these will require more parts than what I originally ordered I'll probably solder those circuits at a later date.

I'll write up a longer post going into more detail once I've finished but I'm currently getting ready to work on the PCB. Hopefully once I've figured out where to place the power connector on the board, I can order the board by next month and find out all the things I missed in the design 🙃.
